Prefab Modular Mobile Prefab Wooden Living Portable Shipping Steel Luxury Mobile Micro Mobile Office Container House

Welcome Visit Our YouTube Channel https://qdvista.en.made-in-china.comVideos you might like1) Sample Show of 20ft Self made Container Househttps://youtu.be/Sp-jmdxYZoU2) Container House Storage & Processing Workshophttps://youtu.be/NBqFcAoCvpA3) Two-floor Container Houses Displayhttps://youtu.be/HrlyTD5XEy81) Safe and r

Featured Products

Prefabricated Modular Mobile Prefab Wooden Living Portable Shiping Steel Luxury Mobile Tiny Moveable Office Container House
Welcome Visit Our YouTube Channel

https://qdvista.en.made-in-china.com

Videos you might like

1) Sample Show of 20ft Self made Container House
https://youtu.be/Sp-jmdxYZoU

2) Container House Storage & Processing Workshop
https://youtu.be/NBqFcAoCvpA

3) Two-floor Container Houses Display
https://youtu.be/HrlyTD5XEy8
Prefabricated Modular Mobile Prefab Wooden Living Portable Shiping Steel Luxury Mobile Tiny Moveable Office Container House
1) Safe and reliable structure: This is designed to resist G10 wind that is 0.5KN/m2 wind pressure;

2) Seismic fortification intensity to 7 Degree. Applicable temperature: :-50ºC~+50ºC.

3) Flexible utilization: single module can be used as a house; more modules can be combined to form a camp.

4) 4 modules stacked as a 20f container size can be put on the top of the container ship, which saves a lot of logistics cost.


1. Container House Advantages

1.1 Long life-span. up to 40 years.

1.2 Prefab, Pre-installed electrical and plumbing, time-saving.

1.3 Movable And Disassemble. It can be separated according to your requirements. Easy install, transport and relocate.

1.4 Economical and environment-friendly. A short construction period and little workers can be relocated with no waste.

1.5 Convenient transportation can be transported as a shipping container, or flat packed.

1.6 High strength, Live load capacity of roofing: 0.5KN/m2. Second floor load capacity: 150kg/m2.The load-bearing capacity was greater than 40tons. Live load of corridor/ balcony/walkway is 2.0KN/m2

1.7 Waterproof, fireproof, seismic resist. Its wind resistance Grade 11 (wind speed≤ 111.5km/h) Earthquake resistance: Grade 7, External and internal wall heat transmission coefficient: 0.35Kcal /m2hc

1.8 Customizable.various design as per your preference.

1.9 Little requirements on the ground. Being tough and flat is OK

2. What is flat packed container house

VISTA Container House applies the world-class design principle and manufacturing process. Separate independent units can be combined unlimited longitudinally and laterally as required and also the units can be stacked up to 2-3 stories high to further enlarge the space and performance function.

1) Safe and reliable structure: This is designed to resist G10 wind that is 0.5KN/ wind pressure;
2) Seismic fortification intensity to 7 Degree. Applicable temperature:-50ºC~+50ºC.
3) Flexible utilization: single module can be used as a house; more modules can be combined to form a camp.
4) 4 modules stacked as a 20f container size can be put on the top of the container ship, which saves a lot of logistics cost.


3. Wide Application

Suitable uses include offices, canteens, medical clinics, toilets, showers, security, and accommodation.

All units utilize fire rated materials

Prefabricated House / Prefab House / Modular House / Prefab Steel Building / Pre Engineered Building / Mobile House / Movable House / Prefabricated Home / Light Steel Frame Structure Building / Villa / Apartment / Accommodation / Labor Camping / Tent / Cabin / Office / School / Classroom / Hotel / Warehouse / Workshop / Plant / Carport / Restaurant / Dormitory / Permanent Living House Projects / Temporary Living House Project
Prefabricated Modular Mobile Prefab Wooden Living Portable Shiping Steel Luxury Mobile Tiny Moveable Office Container House
4. Do I need a Foundation?

In short, you will always need a foundation for your shipping container home. This is because the ground moves a considerable amount. The ground can rise, sink or slide. This movement can be sporadic and is usually very slow. Even though it is often barely noticeable, this slight movement can affect how to level your home is.

A foundation provides a solid, stable platform for your building. Without this solid platform, the ground's natural movement can cause the containers to split and separate.
The ground underneath your building can also be comprised of different materials. For example, part of the ground could be hard rock and the other part soft clay. This creates an unevenness that can allow your home to shift since the load isn't equally distributed. One result could be having doors that are incredibly difficult to open and close.

A solid, well built, foundation will ensure the weight is appropriately distributed. It will also help prevent moisture and the corrosion that occurs as a result of this moisture.
Note that if the shipping container home will be relocated within a few months, it is sufficient to use railroad ties for this short time frame.

5. Standard Basic Specification

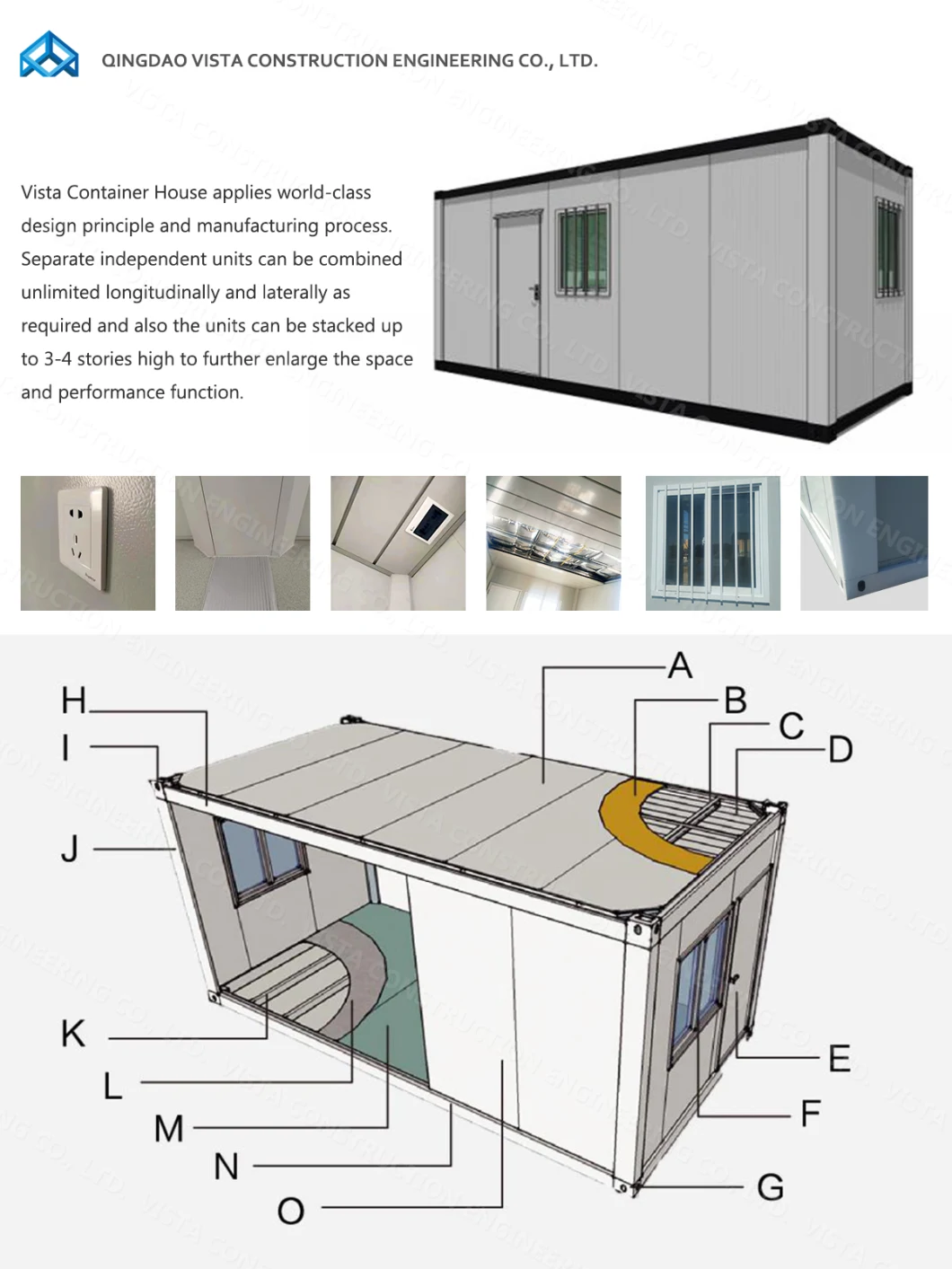

 VISTA - Specifications of Flat Packed Container House
Single UnitMain Structure
Wind Pressure0.55KN/m2External Dimension6058mm*2438mm*2900mm
Seismic Fortification Intensity7 DegreeInternal Dimension5838mm*2215mm*2588mm
Floor Live Load2KN/m2Weight1300kg per unit
Wall Load (without people)0.5KN/m2StructureSteel
Wall Load2KN/m2Wall60mm Rock Woll+PU Sandwich Panel
Snow Load0.4KN/m2Floor18mm Plywood+PVC Vinyl
  Roof50mm Rock Woll+PU Sandwich Panel

VISTA - Main Material List of Flat Packed Container House
NoMain PartItems Specification
1Top of the containercolor steel stressed-skin diaphragm plate0.5mm color steel plate (Butyl tape)
2Roof insulation100mm glass wool roll 14kg/m³, double insulation
3Container top beam Section size 160mm, thickness 3.0mm
4Top corner High-grade self-made container corner pieces 210mm*150mm*200mm*4.0mm thickness
5Roof purlinsC section steel 100mm*40mm*1.0mm 5 pieces+ square tube 30mm*30mm*1.0mm 2 pieces
6Calling V831 model high-grade color steel ceiling
7Bottom of the containerBottom main beam Section size 160mm, thickness 3.0mm
8Bottom corner High-grade self-made container corner pieces  210mm*150mm*160mm*4.0mm thickness
9Bottom purlin Square tube 100mm*50mm*1.2mm*14 pieces
10Fiber cement board1172mm*2800mm*18mm, moisture-proof, fireproof, deformation proof
11Plastic floor1.6mm PVC plastic floor contains a wear-resistant anti-slip layer
12Door & Windows Security door845mm*2050mm, color steel 0.6mm thickness
13Windows 1130mm*1100mm, hollow tempered glass
14Column & WallColumn210mm*150mm, thickness 2.0mm 4 pieces
15Wall panel0.4/75/0.4mm glass wool sandwich panel, V-1150 model, White ash
16Constructionconstruction toolsconvenient construction, the tools are spanner, bolt driver and so on
17construction efficiency4 experienced technicians can build 6-8 prefab houses with a dimension of 20 feet

Prefabricated Modular Mobile Prefab Wooden Living Portable Shiping Steel Luxury Mobile Tiny Moveable Office Container House
6. Design model
Prefabricated Modular Mobile Prefab Wooden Living Portable Shiping Steel Luxury Mobile Tiny Moveable Office Container House

Prefabricated Modular Mobile Prefab Wooden Living Portable Shiping Steel Luxury Mobile Tiny Moveable Office Container House
7. Packing & Delivery & Installation Service
Prefabricated Modular Mobile Prefab Wooden Living Portable Shiping Steel Luxury Mobile Tiny Moveable Office Container House


Easy to assemble and transport, foolproof installation can be done:

01. Hang the bottom of the place where you need it to be.
02. Install the four corner columns on the bottom, then fix it with M12 screw bolt.
03. Hang the top of the four corner columns, then fix it with M12 screw bolt.
04. Check with gradienter, make the four corner columns be vertical.
05. Insert the wall panel one by one from the short side clockwise. (14 pieces in total )
06. Install the prefabricated vertex angle and base angle which we call them PVC at the correct position. (Give a good push to it, very convenient.)
07. Then fixing,switch, socket, brushing glue, laying the ground are the last steps. (If the combined house is needed, the container houses should be connected with screw bolt and iron sheet before inserting the wall panel.)

8. Why Choose Us?

8.1. We have a group of professional engineers, most of whom have more than 10 years' experience in the architecture field.

8.2. Established for more than ten years, our company has got a variety of experiences in design, manufacture, installation and so on. The work staffs have excellent skills. Some of them had helped customers to install the warehouse around the world.

8.3. We also have possessed more than 80 sets of large precise and domestically advanced processing equipment, including large gantry planning machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and so on.

8.4. besides manufacture according to customers' requirements, we also established a set of production standards.  With perfect technique, excellent quality, reasonable price, top-grade services, we have won the favor of lots of customers at home and abroad.

8.5. "Moral personality decides product quality." is our guarantee of the products. "Customers come first." is our everlasting pursuit. Believe your choice; we'll give you a satisfying answer.

Prefabricated Modular Mobile Prefab Wooden Living Portable Shiping Steel Luxury Mobile Tiny Moveable Office Container House
11. Customized design is welcome, it would be better if you could provide the following information:

1. Usage?

2. Sizes(20ft or 40ft) ?

3. Flat container or modified from a shipping container?

4. Internal layout requirements?

5. Insulation and decoration requirements?

6. Quantity?

12. About Us

Qingdao Vista Construction Engineering Co., Ltd. Located in Qingdao City, Shandong Province, China. With over 20 years of experience in steel structure design, manufacturing, marketing. Now, our business scope extends to high-quality steel structure buildings (such as warehouse, workshop, hangar, chicken house, etc. ), prefabricated buildings, prefab houses, container house, steel structural member, sandwich panels, glass curtain wall, decorative metal panels and so on.

We have professional steel structure engineering contracting the first-class qualification, with more than 50-year-limited warranty in steel building manufacturing & installation. We have professional engineers who can provide the perfect designs according to the customer's demand.
